Calor Quadra

The streamlined design of the Calor Quadra fireplace suits many interior design styles. The Mammutti soapstone injector unit within the fireplace radiates steady heat over a long period of time. In terms of dimensions and style, this fireplace is especially well suited for a modern energy-efficient and leakproof house, thanks to its density and the ability to supply combustion air from outside.

Request an offer Find a retailer

Heat-storing fireplace
Mammutti-soapstone

43017

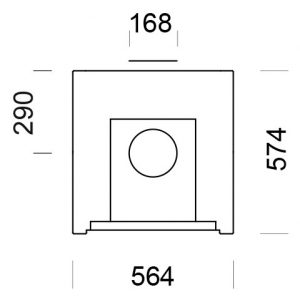

Dimensions

  • Height 1855 mm
  • Width 564 mm
  • Depth 574 mm
  • Weight 875 kg

Thermal information

  • Thermal energy 35.1 kWh
  • Heat release time, percentage of the maximum output (h)
    100 % - 2.5 h 50 % - 11.9 h 25 % - 19.4 h
  • Efficiency 83 %
  • Nominal heat output 1.8 kW
  • Firewood length 25 cm
  • Total amount of wood 10 kg
  • Particles (PM) 24 mg/Nm3
  • OGC 76 mg/Nm3
  • CO 1125 mg/Nm3
  • NOx 133 mg/Nm3

Safety distances to combustible material

  • Safety distance in the back 150 mm
  • Safety distances on the sides 150 mm
  • Safety distance in front 1000 mm
  • Safety distance on top 200 mm

Declaration of Performance

Dimensions

  • Height 1855 mm
  • Width 564 mm
  • Depth 574 mm
  • Weight 875 kg

Thermal information

  • Thermal energy 35.1 kWh
  • Heat release time, percentage of the maximum output (h)
    100 % - 2.5 h 50 % - 11.9 h 25 % - 19.4 h
  • Efficiency 83 %
  • Nominal heat output 1.8 kW
  • Firewood length 25 cm
  • Total amount of wood 10 kg
  • Particles (PM) 24 mg/Nm3
  • OGC 76 mg/Nm3
  • CO 1125 mg/Nm3
  • NOx 133 mg/Nm3

Safety distances to combustible material

  • Safety distance in the back 50 mm
  • Safety distances on the sides 150 mm
  • Safety distance in front 1000 mm
  • Safety distance on top 200 mm

Declaration of Performance
